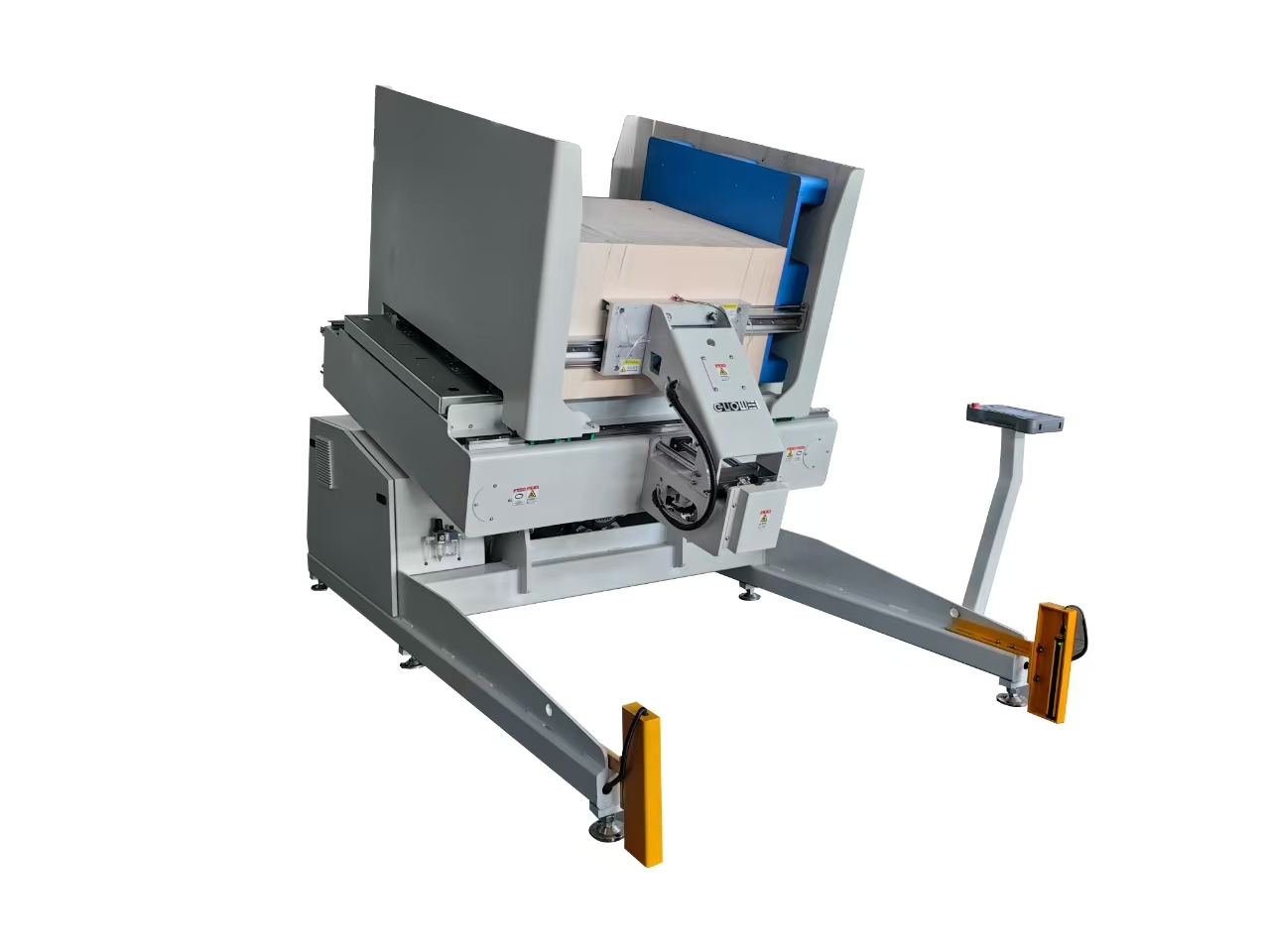

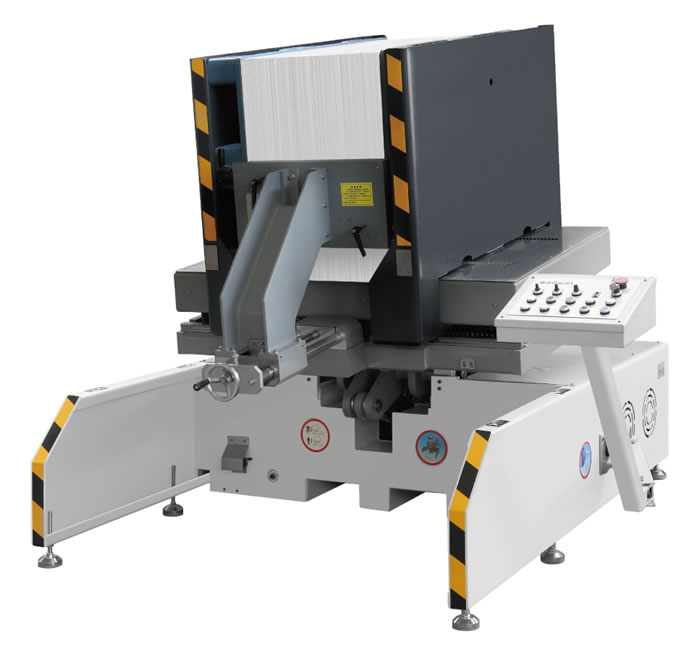

130 TN 翻转机


130 TN


自动纸堆翻转整理机,用于双面印刷,正面印刷后翻转印反面;或印刷之反面先上光油(如防雾、防蛀、防潮光油等)再印刷正面;通过纸堆翻转放置以减轻印刷完毕的纸堆长时间放置所产生的翘边和卷边的卷曲程度。灰底白卡只需印刷灰底,白底白卡需印刷反面白底,双胶纸印刷反面等都需要翻转纸堆。

吹风除尘、震动闯纸、减少纸毛、纸屑等杂质,改善纸张表面质量,减少双张进纸,清楚喷粉,加快油墨干燥,减少纸张粘连,背面蹭脏,减少油墨气味,提高生产效率和产品质量。


Turning Machine Paper flip is usingfor double side printing,turning to printback side after front side printed,orturning to print front side after coating on back side (such asmidew,moth-proofing,moistuer proof light oil etc);through paper-pile flip toalleviate the printed paper,which stored for a long period become warped edgeand edge of crimp degree.Lots of different types of paper need to filp such asCCNB is printed on the grey bottom only,TRL is printed on the white bottomonly,offset paper printing opposite,etc.

Airing and dust rempving,jogging,reducingimpurities such as lint and paper scarp,improving the surface quality of qualityof the paper,reducing double feeding,clear spray the powder,speed up inkdrying,reducing paper adhesion and set-off,reducing ink scent,improve productionefficiency and product quality.


技术参数/Techincal Parameter:


型号

model

130

最大纸张尺寸(MM)

Max.sheet size

800*1300

承载重量(kg)

Carrymng power

1000

纸台高度(mm)

Platform width

1400

纸台深度(mm)

Platform depth

800

最大纸堆高度(包括托盘)(mm)

Max.oile height(includes a tray)

1400

最小纸堆高度(包括托盘)(mm)

Min.oile height(includes a tray)

630

总功率(kw)

Power

10.5

外包装尺寸(mm)

Overall dimension

2150*1640*1820

机器重量(kg)

Machine weight

3200

如因技术改变使技术参数发生变更,恕不另行通知。

Such as make technical parameters change with technical change, without prior notice.
